Woodford Chadwick 5 10m 5 Inch 316 Dura Flue Bundle

  • In stock | Same day collection or delivery
£1,197.60
(Price includes VAT)
Product Options:
  • Specifications
    Guarantee Lifetime
    Efficiency Wood - 75.6% Smokeless Fuel - 79.9%
    Heat Output 4.6kW
    clearSkies Rating clearSkies 3
    Energy Rating A
    DEFRA Approved Yes
    Airwash System Yes
    Construction Steel Body - Cast Door
    Flue Outlet Top & Rear (Interchangeable)
    Flue Size 5-inch (125mm)
    Fuel Type Wood or Multi Fuel
    Fuel Grate Type Multifuel Grate (to burn Wood & Smokeless Coal)
    Log Length 360mm
    Suitable For 12mm Hearth Yes
    External Air Compatible Yes
    More Colours Yes
    Distance to Combustibles - Top 500mm
    Distance to Combustibles - Sides 400mm
    Distance to Combustibles - Rear 600mm
    Product Range Woodford
    Stove Window Size (Width mm x Height mm) 342mm x 260mm
    Sweep Flue through Stove? Yes

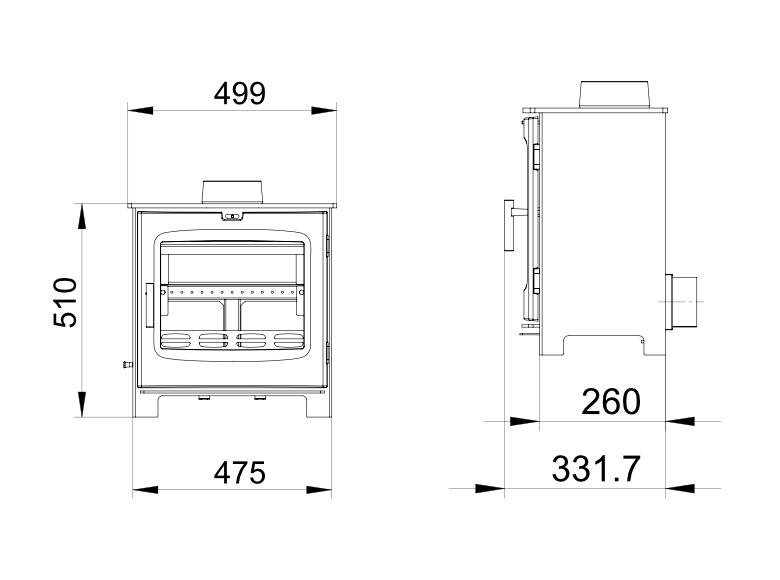

  • Product Sizes
    Woodford Chadwick 5 10m 5 Inch 316 Dura Flue Bundle
    Overall Width 475mm
    Overall Height 530mm
    Overall Depth 260mm
  • Description

    LIMITED TIME ONLY - Chadwick 5 with 10m of 316 5 Inch Dura Flue Pack

    This packs includes:

    • Woodford Chadwick 5 stove
    • 10m 5" 316 Dura Flue
    • MADF125 Flue Adapter
    • PHRCDF Pot Hanging Rain Cap
    • FREE EX1000X5 1000mm 5" Matt Black Stove Pipe



    DURA FLUE Premium Class 1 Stainless Steel 316 or 316/904 Flexible Chimney Liner, to be used when re-lining a masonry chimney only - EN 1856-2 T600 N1 D V2 L50010 G, HETAS approved and CE marked. See technical documents for full specification and installation.

    Dura Flue is the only stainless steel flexible chimney liner on the UK market that can be fitted in either direction. This is due to the patented manufacturing process, this not only allows for multi directional use but also makes it extremely difficult for corrosion to set in unlike other traditional flexible flues. Dura Flue is made from 2 separate sheets of stainless steel:

    The Outer: The outer skin of Dura Flue is a pre profiled ribbon of stainless steel, with deep, close together waves that create an extremely hard and protective exterior for the flue, like a shell. When your chimney liner is dragged down a brick flue it will undoubtedly be pulled and hit against the brick work, because the outer/shell is a separate sheet (and not 1 or 2 pieces folded together) it protects the smooth inner from damage. It also makes it less likely that the flue in general will be damaged or compromised before installation compared to other flues that are soft and can be damaged as easily as being knocked in the back of a van.

    The Inner: The Inner skin of Dura Flue is a pre profiled ribbon of stainless steel, which has been made with a fine special oil spray to create a smooth inner surface. Unlike other flues our inner surface of steel has not been folded or scratched in production and has not been compromised in any way. It is locked to the outer skin purely with pressure using a patented technique. This means that Dura Flue essentially has a fresh uncompromised inner surface for the flue gasses to pass through making it almost impossible for corrosion to set in.



    There are no internal flaps, folds or lips on the inside of Dura Flue it is the only chimney liner on the UK market to have this unique feature. Traditional flue liners with multi directional arrows and flaps/folds inside damage easily, can come apart on installation and could splay or come apart internally once fitted, which you will not normally see unless your installer or chimney sweep does a camera inspection for you.

    Please see below our examples of Dura Flue and traditional (cheaper) chimney liners.



    Dura Flue will come wrapped in shrink wrap clearly marked 316 or 904, we apply black tape of the ends of the flue for 316 and white tape for 904. Please make sure you fill out a warranty form for every installation. As we make all our chimney liners to order you’ll never have to buy a longer length than you need, we make every single liner for you the diameter and length you need it there and then, order online, call in and collect or arrange a same day or next day delivery with us, nothing is a problem.



    • HETAS approved and CE marked;
    • Constant burning temperature of T600 and maximum T1000;
    • 15 Year Warranty (No quibble);
    • Can be fitted either way up;
    • No folds or flaps on the inside;
    • Extremely tough and strong;
    • Smooth inner;
    • Protective outer;
    • Flexible and Durable;
    • Premium flue and quality assured.

  • FAQs
    No questions yet. Be the first to ask the question!
